HP702

Handheld | DMR

Highlights

diagram indicating highlights of HP702

Display

0.91-inch display that shows the channel, signal strength, power status, and power level

AI Noise Suppression

Artificial Intelligence provides real time digital noise suppression

High Reliability

IP68 rated and resilient to 2-meter drop to stand up to a lot of wear and tear, MIL-STD-810 G standard

Battery

The 24-hour long battery life, ensures a full day of delivering key information and calls, truly reduce burden and increase efficiency for users, and with anti-counterfeiting function, safety is more guaranteed.

Programmable Buttons

The 24-hour long battery life, ensures a full day of delivering key information and calls, truly reduce burden and increase efficiency for users, and with anti-counterfeiting function, safety is more guaranteed.

Water-porting Design

Water-porting technology allows any water that gets into the speaker cavity to drain out when vertical, ensuring the audio clarity is maintained.

Functions

Created with Sketch. Thinner and Lighter

An optimized mechanical design and a compact lithium polymer battery are discreetly made to fit into the HP702's design, making the radio only 29.5mm in thickness and 290g in weight, easy to carry.

StayConnected-0x20 Enhanced Coverage

Extends the operational range and improves the talk range through high receiver sensitivity and high transmit power, stretching communications into areas where it simply was not possible before.

Created with Sketch. Louder and Clearer Audio

HP702 equips an optimized powerful loudspeaker that can help users to hear clear sounds even in a noisy environment. Water-porting technology is also used to drain out any water that gets into the speaker cavity, ensuring the audio clarity is maintained. AI-based noise cancellation technology can decrease 30dB background noise and howling. No matter what noise environment the calling party is in, it ensures that the called party hears a clear sound.

Created with Sketch. Longer Battery Life

HP702 optimizes product design and technologies to reduce power consumption, meanwhile the latest in proven lithium polymer technology is used in the standard battery which is lighter and smaller than ever before. The new technologies bring a duty cycle of 5/5/90 on achieving a shift life of 30 hours on high transmit power and ensure a full day of delivering key information and calls.

MIL-STD-20x20 Higher Level of Ruggedness

It is IP68 rated, impervious to water jets and submersible to a depth of 2 meters for 4 hours, and also resilient to 2-meter drops onto concrete, and stand up to the toughest environments.

Created with Sketch. Flexible Wireless Connection

HP702 supports the built-in BT 5.0 for wireless connections. The advantages of BT 5.0 are low power consumption, rapid transmission, multiple devices and more rich data applications such as BT earpiece, BT Patrol, BT positioning.

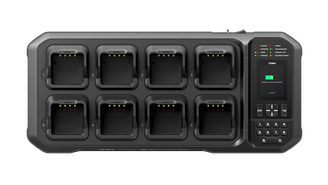

Accessories for HP702

Included as standard with HP702 Included as standard with HP702

Systems that work with HP702

Technical Specifications

General

Frequency Range
VHF: 136-174 MHz
UX: 350-470 MHz
UHF2: 450-520MHz
Channel Capacity
1024
Zone Capacity
64
Dimensions(H×W×D)
132 x 55 x 29.5mm
Weight
290g
Display
OLED Display: 0.91 inch
Battery Life (5-5-90 Duty Cycle)
2400 mAh: 24 h (GNSS off),20 h (GNSS on)
3000 mAh: 30 h (GNSS off),25 h (GNSS on)

Environmental Specifications

Dust & Water Intrusion
IP68
Humidity
Per MIL-STD-810H Standard
Shock and Vibration
Per MIL-STD-810H Standard
