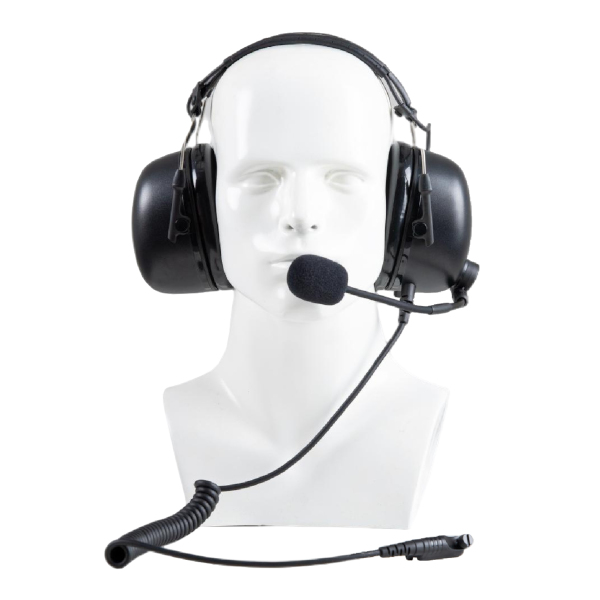

ECN49-P
Heavy-Duty Headset with Noise-cancelling Microphone
Robust hearing protection headset with headband, microphone and built-in speakers, 13-pin connector, IP54, NRR 30dB, Hytera Logo (RoHS) (REACH) – applicable for HP6, HP7, PDC550, PDC680, PT590, PTC680
Highlights
Functions
Technical Specifications
Specifications
- Weight
- about 467g
- Color
- black
- PTT Key
- available
- VOX
- none
- Emergency Key
- none
- Microphone Sensitivity
- -52±3 dB @ 1 kHz 3.0 V 2.2 K, 0 dB = 1 V/Pa
- Speaker Power
- 200 mW (rated) 500 mW (max.)
- Speaker Impedance
- 2x32 Ω±15% @ 1 kHz
- Speaker Frequency Response
- 76±4dB@1kHz 0.179v/1cm 20uPa IEC318
- Certification
- CE
- IP Rating
- IP54
- Operating Temperature
- –30℃ to 60℃
- Storage Temperature
- –30℃ to 60℃
- Note
- NRR30dB
