PDC680
Dual Mode Rugged Radio
Hytera PDC680 dual-mode rugged radio combines a mission-critical DMR radio with an Android-based smartphone in a single device. It harnesses the power of narrowband and broadband technologies to provide mission-critical voice call, photo and video taking, positioning, and more. This innovative radio enables seamless communications between DMR network and public network such as 2G, 3G, LTE, and WLAN.
Highlights
Colour Ring
Dual Camera
Rear 13MP / Front 8MP
Tilt Display
Easy to read
Tough Main Screen
Industrial-grade display that is scratch and oil proof resistant
Large PTT Button
Easy Access
Volume/Contacts Knob
Programmable Keys
Fully Customizable
Functions
Loud and Clear Audio
Using the enlarged front chamber technology and professional acoustic design, the PDC680 can output sound at up to 128 dB. To ensure crystal and clear audio in noisy environments, the PDC680 adopts AI-based noise cancellation, echo cancellation, and wind noise reduction technologies.
All-round security assurance
The PDC680 can secure the voice and data through authentication, software and hardware encryption, or more. TrustZone protects the system; full-disk encryption (FDE) protects the user data; air interface encryption (AIE) and end-to-end encryption (E2EE) protect the voice and data communication; and remote control helps you manage radios.
Rugged and Durable
Rated at IP68 and ESD IEC Level 4, the PDC680 withstands water, dust, and electrostatic discharge. It can also withstand 1.5-meter drop from all facets. The industrial-grade touchscreen stands up to continuous use in any weather. All these help the PDC680 survive harsh environments.

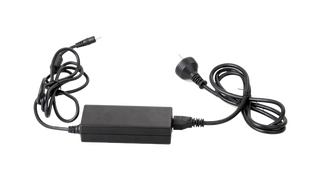

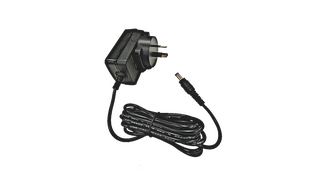

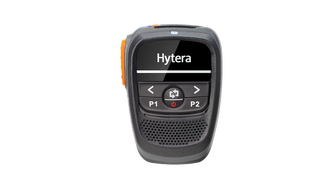

Accessories for PDC680
Included as standard with PDC680
Systems that work with PDC680
Technical Specifications
General
- Dimensions (H x W x D)
- 140 x 60 x 29.1mm
- Weight (with antenna & battery)
- 325±5g
- AP Processor
- 8-core, 1.8GHz
- Operating System
- Android 10
- Google Certification
- Google Mobile Services
- Memory
- RAM: 3GB; ROM: 32GB eMMC, Supports up to 256GB with Micro SD card
- Ports
- 13PIN Accessory/Charging Port
- Top Screen
- 0.92"128x88 Colour: black & white
- Main Screen
- 3.6" 1280x720, Capacitive, Touch Screen, Gloves Proofed, Passive Stylus
- Card Slots
- 2 Nano SIM cards
- 1 Micro SD card
- 1 Encryption card
- Front Camera
- 8MP, Fixed Focus
- Rear Camera
- 13MP, Auto Focus
- Sensors
- Proximity Sensor
- Ambient Light Sensor
- 6-axis sensor (accelerometer + gyroscope)
- Magnetometer
- Accelerometer
Wireless Data Communication
- DMR/Analogue
- 340-470MHz
- LTE
- 3GPP LTE FDD-LTE: B1/B2/B3/B4/B5/B7/B8/B20/B26/B28 TDD-LTE: B34/B38/B39/B40/B41
- CDMA
- CDMA 1xRTT BC0 CDMA2000 1xEV-DO BC0
- WCDMA
- B1/B2/B4/B5/B8
- TD-SCDMA
- B34/B39
- GSM
- 850/900/1800/1900MHz
- WLAN
- 802.11 a/b/g/n/ac, 2.4GHz/5GHz
- NFC (Optional)
- 13.56MHz
- BT
- V4.2, BDR/EDR/BLE
- Positioning
- GPS/BDS/GLONASS/Galileo/QZSS/A-GPS Position performance for open zone : TTFF (Cold boot)< 1minute Horizontal position accuracy < 10meters
Transceiver
- Channel Spacing
- 25/20/12.5kHz
- TX Power
- 1W/3W (Analogue)
- 1W/4W (DMR)
- RX Sensitivity
- 0.2uV/-121dBm (12dB SINAD) 0.16uV/-123dBm (12dB SINAD) (Typical) 0.2uV/-121dBm @BER5%
- Inter-modulation
- TIA-603: 70dB@12.5/20/25kHz
- ETSI: 65dB@12.5/20/25kHz
- Blocking
- 84dB
- Suppression of Spurious Response
- TIA_603: 70dB@12.5/20/25kHz
- ETSI: 70dB@12.5/20/25kHz
- Adjacent Channel Selectivity
- TIA_603: 60dB@12.5kHz/70dB@20/25kHz
- ETSI: 60dB@12.5kHz/70dB@20/25kHz
- Frequency Stability
- ±0.5ppm
Battery
- Standard
- 2400 mAh Li-polymer, 7.7V (Rated)
- Optional High Capacity
- 4000 mAh, 7.7V (Rated)
Video and Photo
- Video File Types
- 3GPP(.3gp), MPEG-4(.mp4) QuickTime(.mov), WEBM(.webm), Windows Media(.asf,.wmv), RealMedia(.rmvb, .rm) MPEG-PS(.mpg, .mpeg), MPEG-TS(.ts), AVI(.avi), Matroska(.mkv)
- Image File Types
- JPEG(.jpg), GIF(.gif ), PNG(.png), BMP(.bmp)
- Video Recording Quality
- Front Camera: 1080P HD up to 30 frames per second (fps)
- Rear Camera: 1080P HD up to 30 frames per second (fps)
Audio
- File Types
- MP3(.mp3), WAV(.wav), 3GPP(.3gp), MPEG-4(.mp4,.m4a), ATDS raw AAC(.aac), MPEG-TS(.ts), FLAC(.flac), MIDI(.midi, .xmf, .mxmf ), RTTTL/RTX(.rtttl, .rtx), OTA(.ota), iMelody(.imy), Ogg(.ogg), Matroska(.mka), QCELP(.qcp), RealMedia(.ra), Windows Media(.wma), AC3(.ac3)
- Audio Output
- 2W
- Audio Distortion
- ≤3%
- Digital Vocoder Type
- AMBE+2™
Environment
- Dust and Water Proofing
- IEC60529- IP68 (2m, 4h), IEC60529- IP66
- Shock and Vibration
- MIL-STD-810G
- Humidity
- MIL-STD-810G, ≤ +65°C,95%RH
- ESD
- IEC 61000-4-2 (Level 4), ±8kV (Contact), ±15kV (Air)
- Operating Temperature
- -20°C - +60°C
- Storage Temperature
- -30°C - +80°C
