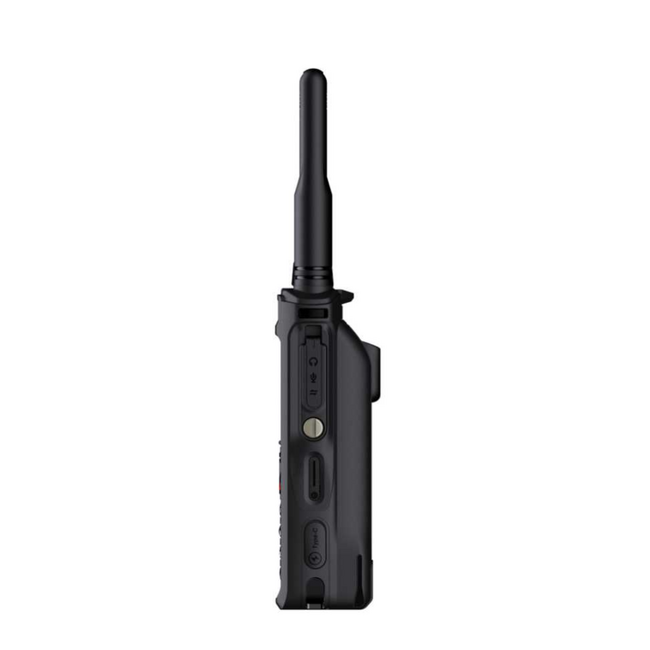

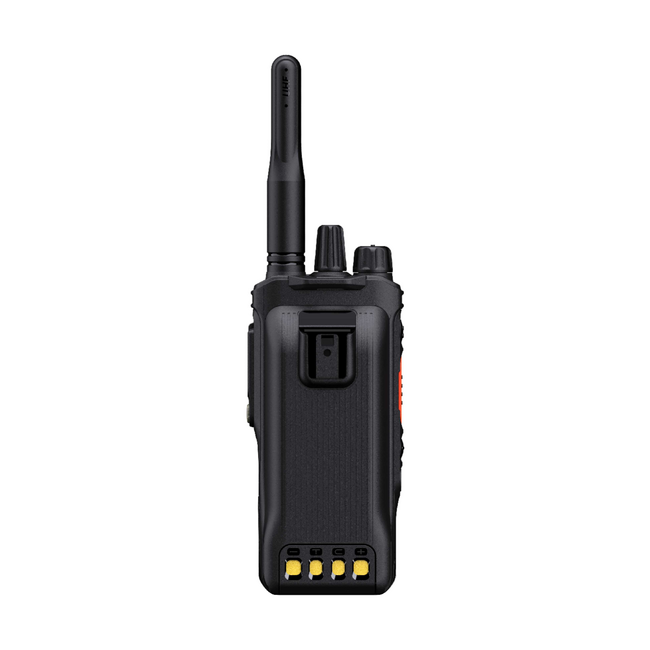

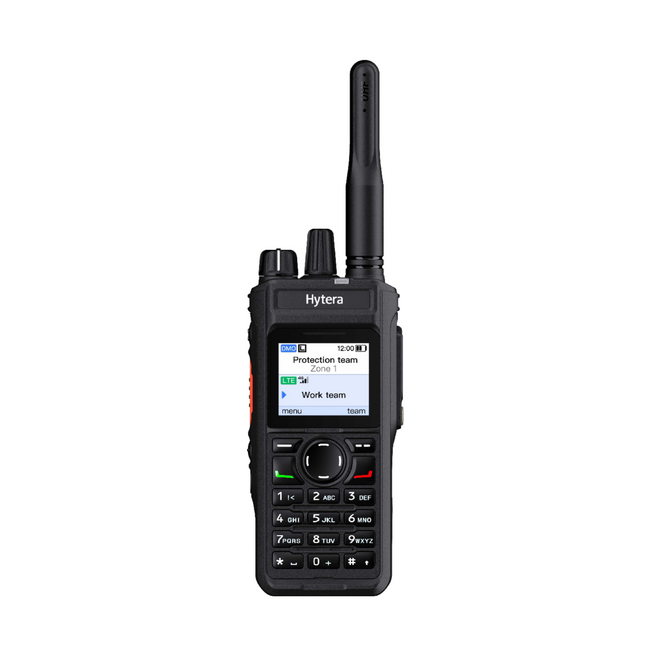

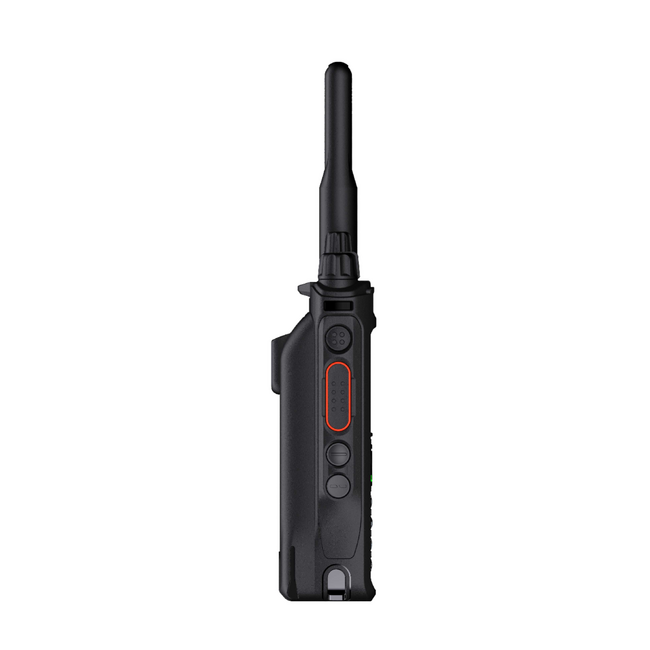

PDC580
Dual-mode Rugged Radio
The PDC580 dual-mode rugged radio is a push-to-talk over cellular (PoC) radio, a PMR radio, a call recorder, and a voice gateway — all in one. It delivers instant, secure, and stable communications, empowering the professionals working in railway, security or electricity to keep safe and efficient, anywhere and any time. Optimized by the know-how from Hytera RF&Antenna Lab, Audio Lab, Energy-efficient Lab, and UX Lab, the PDC580 is packed with various innovative features for your daily tasks— leading-edge connectivity across narrowband and broadband (LTE), exceptional audio performance, effortless PoC-PMR Simul-Call, expanded interoperability, and long duration call recording, etc. All of these will exceed your expectations for communication and convenience.
Highlights
Functions
Communicate without Limits
Engineered to run on ultra-fast LTE networks, the PDC580 keeps you connected anywhere. Even when the LTE network is down during an emergency, the PDC580 still has your back. It also provides stable direct communications over a long distance, thanks to high transmitting power (5 W) and receiving sensitivity (0.16 μV).
Louder and Clearer
The PDC580 delivers unprecedented loudness up to 99 dB, relying on its powerful speaker and audio enhancement technology. Together with the advanced noise cancellation algorithm, wind noise reduction and water porting design, this radio always ensures that every call is crystal clear, even in crowded and noisy areas.
PoC & PMR Simul-Call
The PoC & PMR Simul-Call allows you to initiate the PoC call and the PMR call simultaneously with one press of the primary PTT key, saving your time and effort.
PoC-PMR Voice Gateway
Serving as a gateway, the PDC580 bridges PoC and PMR networks to ensure seamless communications across different radios which include PoC, Digital PMR and analog.
Tackle the Tough Outdoor Conditions
The PDC580 is a truly rugged radio. It meets IP67, MIL-STD-810H, and ESD IEC level-4 standards, surviving almost any challenges from water, dust, and 1.5-meter drops to extreme temperatures. Even when the ambient temperature is down to -30°C, the PDC580 still performs well.
Lasting Over an Entire Shift
Built on high energy density technology, the PDC580 has a large-capacity battery of 3,000 mAh (operating voltage: 7.7 V) in a compact size. It offers extended operational hours to cover your entire shift. A 30-minute charge will give you up to 8 hours of use, thanks to the USB Type-C fast charging technology.
Accessories for PDC580
Included as standard with PDC580
Systems that work with PDC580
Technical Specifications
General
- Dimensions(H ×W ×D) mm
- 128 mm x 55 mm x 37 mm
- Weight
- 345g
- Port
- USB Type-C port 13-pin accessory connector
- Display
- 1.77-inch LCD, 160 x 128 pixels
- Card Slots
- 1 x Nano SIM card
- Operating Voltage
- 7.7 V (rated)
- Battery
- 3,000 mAh Li-Ion battery 2,400 mAh smart battery (optional)
Wireless Data Communication
- Narrowband
- VHF: 136-174MHz UHF: 400-470MHz
- Broadband
- LTE-FDD: B1/3/5/7/8/20/28 LTE-TDD: B38/40/41
- SDC-B
- Support
- Positioning
- GPS, BDS, Galileo, GLONASS TTFF (cold start) < 50s (CEP for 95%, –130 dBm)Horizontal accuracy < 5m (CEP for 90%, –130 dBm)
Transceiver
- Channel Spacing
- 12.5/20/25 kHz
- TX Power
- 1 W/5 W
- RX Sensitivity
- Analog: 0.16μV/-123dBm (12dB SINAD) Digital: 0.16μV/-123dBm @BER5% (typical)
- Audio Power Output
- 1.5 W (rated)
- Digital Vocoder Type
- AMBE+2™
Environmental
- Operating Temperature
- -30°C ~ +60°C
- Storage Temperature
- -40°C ~ +85°C
- ESD
- IEC 61000-4-2 (level 4), ±8 kV (contact), ±15 kV (air)
- Dust & Water Protection
- IP67
- Humidity
- Per MIL-STD 810 H, ≤ +65°C, 95%RH
- Vibration,Drop & Shock
- MIL-STD-810 H
