W60
Wearable MCS Radio

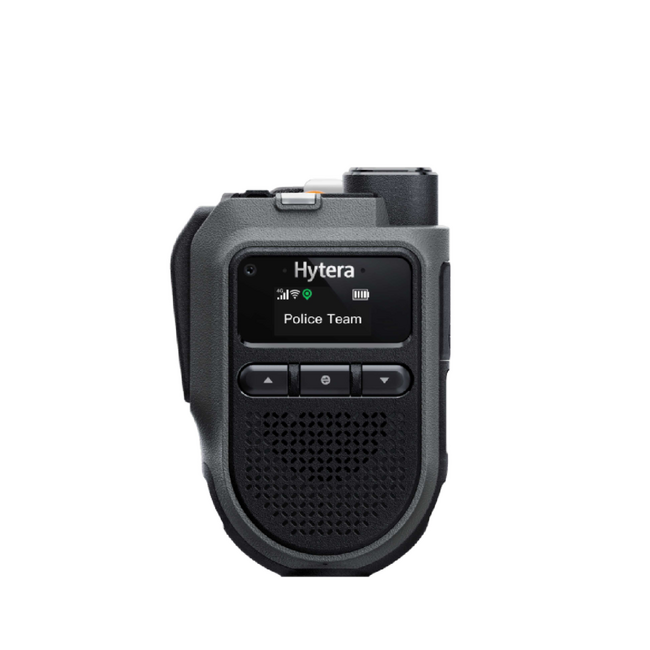

Hytera W60 is a wearable MCS radio that delivers mission-critical voice, video and data services. It works seamlessly as a remote speaker microphone for your existing PMR radios, switching to broadband when out of coverage, and also serves as a lightweight standalone MCS radio. Designed for sectors such as public safety, mining, airport, transportation, and security, it ensures uninterrupted communication at the critical moment.
Highlights
Functions
Highlights of W60
High Expandability. Best Of Both Worlds.
The W60 works as a wired RSM for existing PMR radios and automatically switches to broadband MCX networks when out of coverage. It ensures continuous Push-to-Talk communication without changing existing systems or workflows. It can also operate as a standalone lightweight MCS radio for flexible field use.
Audio, On Another Level.
The W60 features a 3W speaker delivering up to 99 dB output for clear communication in noisy environments. AI noise cancellation reduces background noise by up to 40 dB. It ensures reliable voice clarity in demanding operational settings.
One Camera. Dual Purposes.
The integrated camera supports real-time video streaming to command centers for improved situational awareness. It also enables instant photo and video capture for on-site documentation. Data can be securely stored via up to 512GB SD card for operational traceability.
Comfortable To Use
Weighing only 156 grams, the W60 is designed for all-day wearable comfort. Its ergonomic curved PTT key allows fast and intuitive operation by touch. It supports efficient communication in mobile and high-pressure environments.
MCX. Always Connected.
The W60 supports mission-critical MCX services including voice, video, and data communication. It ensures service priority with QCI 65, 67, 69, 70 and eMBMS support. This helps maintain reliable communication even under network congestion.
Always Powered.
The 2800mAh battery supports up to 24 hours of operation on a single charge (10-10-80). When needed, it can draw auxiliary power from a connected PMR radio to extend runtime. This ensures longer operation for extended shifts.
Accessories for W60
Included as standard with W60
Systems that work with W60
LTE-PMR Convergence Solution
Technical Specifications
General
- Dimensions(H×W×D) mm
- 89.5mm×58mm×27.5mm (exlucing local protrusions)
- Weight
- 156g (without belt clip & cable)
- Operating System
- Android 12
- Memory
- 2GB RAM + 16GB ROM
- Peripheral Interface
- 3.5 mm audio jack USB Type-C port（side）-charging & data transfer USB Type-C port (bottom)-to 13-pin
- Display
- 0.96 inch, 160 x80 pixels
- Card Slots
- 1* SIM, 1* TF
- Camera
- Front 8MP
- Battery
- 2800mAh, non-replaceable, support battery anti-counterfeiting design, 3.85V power supply
Wireless Data Communication
- LTE
- TDD-LTE: B34/B38/B39/B40/B41 (Full Band) FDD-LTE: B1/B2/B3/B4/B5/B7/B8/B12/B13/B17/B18/B19/B20/B26/B28 (Full Band)/B66
- WCDMA
- B1/B2/B3/B4/B5/B8
- GSM
- 850/900/1800/1900
Video and Imaging
- Video Resolutions and Frames Per Second
- 1080p@30fps
Audio
- Output
- Rated 2W, Max 3W
Environmental
- Operating Temperature
- –20°C to + 60°C
- Storage Temperature
- –30°C to + 70°C
- ESD
- IEC 61000-4-2: (ESD)± 12 kV (Air)；±8 kV (Contact)
- Dust & Water Protection
- IP68
- Vibration,Drop&Shock
- 1.5 m
Certification
- Certification
- CE
