MT680 Plus S

Mobile | TETRA

Highlights

diagram indicating highlights of MT680 Plus S

Versatile Operation

Besides Direct Mode (DMO) and Trunked Radio Mode (TMO), the MT680 Plus S supports ETSI DMO Gateway and ETSI type 1A DMO Repeater operation, boosting the area of operation for other TETRA users

Clear Communication

The MT680 Plus S features an advanced audio chip with the latest noise cancelling capability. Users working in noisy environments therefore benefit from excellent audio quality

User-friendly Design

The large TFT LCD display allows trouble-free viewing even with bright sunlight. The intuitive interface and tailored menu structure ensures that operating and handling communications is a breeze

Flexible Installation

You can install the operating head wherever the control elements are easily accessible. The front panel is dust-proof and water-proof (IP67), so it can be installed practically anywhere

Voice and Data Services

Thanks to the integrated GPS function precise positioning is available, as well as many other voice and data services according to the TETRA standard. Optional encryption and the recording feature offer additional important functionality

Functions

Created with Sketch. Status Remote Control

Control the radio remotely by sending it specific status messages.

Created with Sketch. Passwords, PINs and Encryption

Protect your workforce against evesdropping or "man in the middle" attacks by applying a PIN/PUK at switch on, protect the programming with a password and use Air Interface Encryption and End to End Encryption.

Created with Sketch. Gateway

Use the Gateway function to give coverage in areas where you have little or no coverage and connect your DMO radios to the network via the Gateway.

Created with Sketch. Full Call Out

Use the radio as a pager with integrated resource management function.

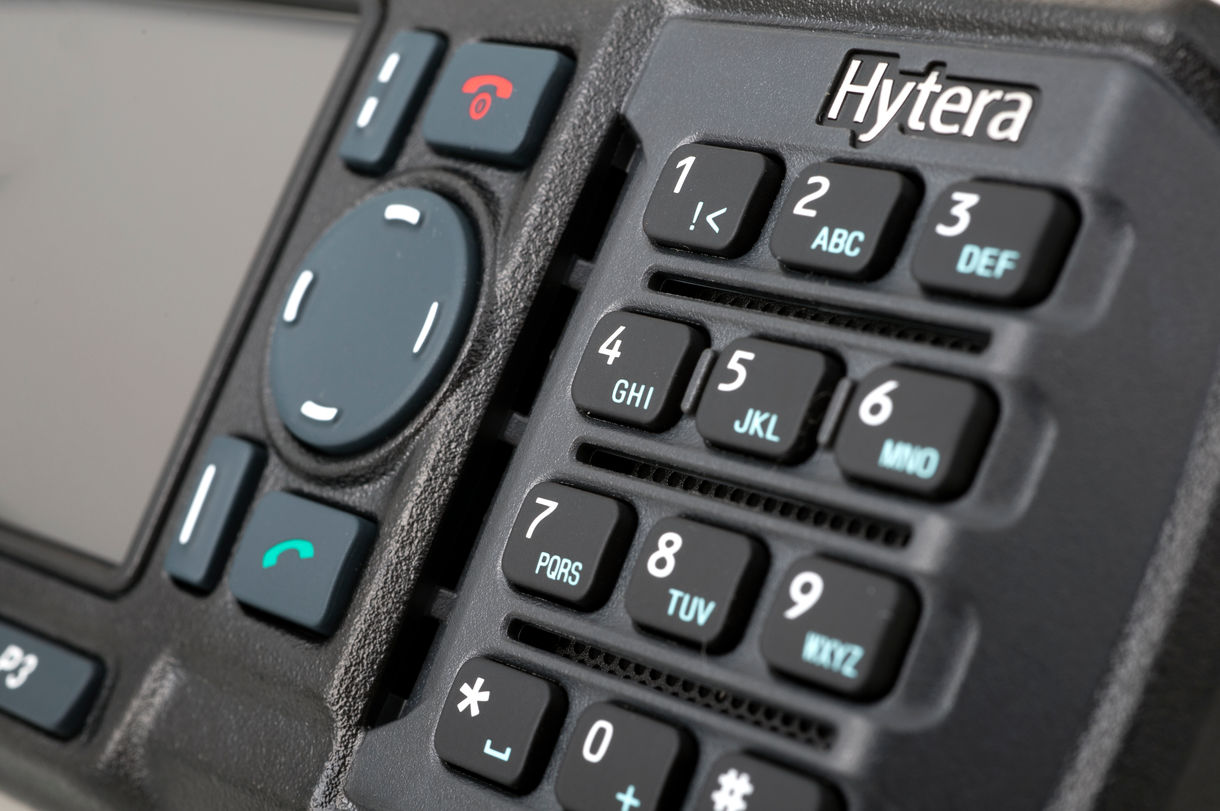

Mt680 5

Created with Sketch. OTAP (Over The Air Programming)

Make adjustments to the existing programming of the radio using the free OTAP application.

Created with Sketch. RF Power

High 3W transmit power to improve coverage without the need for an additional license.

Accessories for MT680 Plus S

Included as standard with MT680 Plus S Included as standard with MT680 Plus S

Antenna

Other

Maintenance

Audio

Charger & Power

Installation

Systems that work with MT680 Plus S

Technical Specifications

General

Frequency Range
F4: 405 - 475MHz
F5: 806-870 MHz
Dimensions(W×H×D)
70 x 184 x 201 (mm)
Weight
1853g
Display
LCD Color 240 x 320 pixels Up to 260000 colors
Keypad
Available both on main unit and keypad microphone
Programmable Buttons
25

Environmental Specifications

Dust & Water Intrusion
IP54 Standard (radio unit) IP67 Standard (control unit)

Voice calls

Individual, Hooking
YES
Individual, non-Hooking
YES
Group, with Late Entry, TPID
YES
Notification Talkgroups
YES
Priority calls (group/indiv, HD/FD), 15 levels incl pre-emption
YES
via Repeater
YES
Repeater Type 1A, single call single frequency
YES
Repeater SDS and Status
YES
Repeater Air Interface Encryption DMO-2C
YES
Repeater Call Initiate and Participate
YES
via Gateway
YES
Gateway, group & Indiv voice calls from TMO to DMO and vv.
YES
Gateway pre-emption TMO to DMO and DMO to TMO
YES
Gateway SDS messaging TMO to DMO and vv.
YES
Gateway DGNA
YES
Gateway Emergency calls
YES
Full Duplex
YES
Telephony: PSTN, PABX, DTMF
YES
Phonebook restricted individual calls
YES
Broadcast
YES
Open group Call (DMO)
YES
DGNA
YES
DGNA "drag and drop"
YES
CAD (Call Authorised by Dispatcher)
YES
Standard DMO and TMO Folders
YES
Favourite folder (TMO & DMO mixed)
YES
Audio Profiles (Silent, Normal, Loud etc)
YES

User Safety and convenience

Lone Worker
YES
Man Down
YES
(Silent) Emergency call to Selected group
YES
Emergency Status
YES
Emergency Protect mode
YES
Emergency call via gateway or repeater
YES
Tactical Emergency (to predefined group)
YES
GPS, LIP and NMEA
YES
GPS Triggers (distance, time, status, Emergency, TX-I etc)
YES
GPS Overspeed alarm
YES
GPS via repeater or gateway
YES
GPS Route Trace (display distance and relative speed)
YES
Ambiance Listening
YES
Bluetooth
YES
Vibrate
YES
RUA (Radio User Aliasing)
YES
Low battery Alert
YES
No Coverage' Alert
YES
CallOut (Full)
YES
Configurable Keypad Lock
YES
Transmit Inhibit (TX-I) (with status)
YES
Group Change Voice broadcast
YES
Multiple Menu languages
YES
Time Synchronisation with GPS or Network time
YES
Customised Menu items
YES
Startup Logo & Screensaver Logo
YES
Customisable Alert tones
YES
System interface connector: GPIO, Ext Alarm, Ignition sense
YES
System interface connector: Public Address, Independant audio out
YES

Data

Send & Receive Status, shortcut keys
YES
Send & Receive SDS, shortcut keys
YES
SDS-1, 2, 3, 4, TL
YES
Flash SDS / Status, with Timer, initiate and/or receive
YES
Long text message (TMO)
NO
Status Remote Control
YES
Short Data Template (TMO)
YES
Work Order (TMO)
YES
OTAP(Over The Air Programming) (TMO)
YES
Packet Data, Single Slot (TMO)
YES
Packet Data, Multi Slot (TMO)
YES
Packet Data User Authentication
YES
Peripheral Equipment Interface (PEI)
YES
WAP (TMO)
YES
Circuit Mode Data (TMO)
YES
JAVA Platform 2.0 (TMO)
NO

Network operation

Fallback
YES
Energy Economy mode
YES
Seamless Cell Reselection
YES
Multiple Networks
YES
Automatic Network Selection
NO

Security

Authentication
SWMI Initiated
Mutual Authentication (SWMI Initiated)
Mutual
Air Interface Encryption Classes
Classes 1,2, 3 and 3G
Air Interface Encryption Keys
SCK, DCK, CCK, GCK
Air Interface Encryption OTAR
OTAR of SCK, CCK and GCK
Air Interface Encryption Algorithms
Clear, TEA1, TEA2, TEA3, TEA4
Temporary Enable / Disable
YES
Permanent Disable
YES
End to End Encryption - Embedded AES128 / AES256
YES
End to End Encryption - SIM Card
YES
End to End Encryption - Voice calls
YES
End to End Encryption - SDS
YES
PIN & PUK
YES
Password Protected programming
YES
Encrypted TEI query
YES
