S1 Pro
Hytera S series Business Two-way Radio (S1 Pro)
Hytera S1 Pro is an exquisite business-ready digital radio for luxury hotel, golf course, club, and more high-end businesses. Sleek and light, the radio strikes the perfect balance between elegance and performance, ready for you to instantly connect your team at the push of a button. Getting the best of two worlds—digital and analog, the S1 Pro levels up your communication experience with a basket of innovative features, including noise cancellation, private call, whisper mode, and voice notification. It gives your business the competitive edge at all time.
Highlights
Functions
Classical Doric Style
Hytera draws inspiration from the design of the ancient Greek Doric order, and combines the characteristics of elegance, symmetry and scale to inject a unique artistic style into the S1 Pro.
HD OLED Display
The HD OLED display shows you battery level, frequency, status, channel, and more. Plus, you can create your own channel and radio names that are easy to remember and distinguish.
Reliable Communication
As a digital radio, S1 Pro is compatible with the existing radios and systems. Lower power consumption, wider communication range, more accurate data transmission.

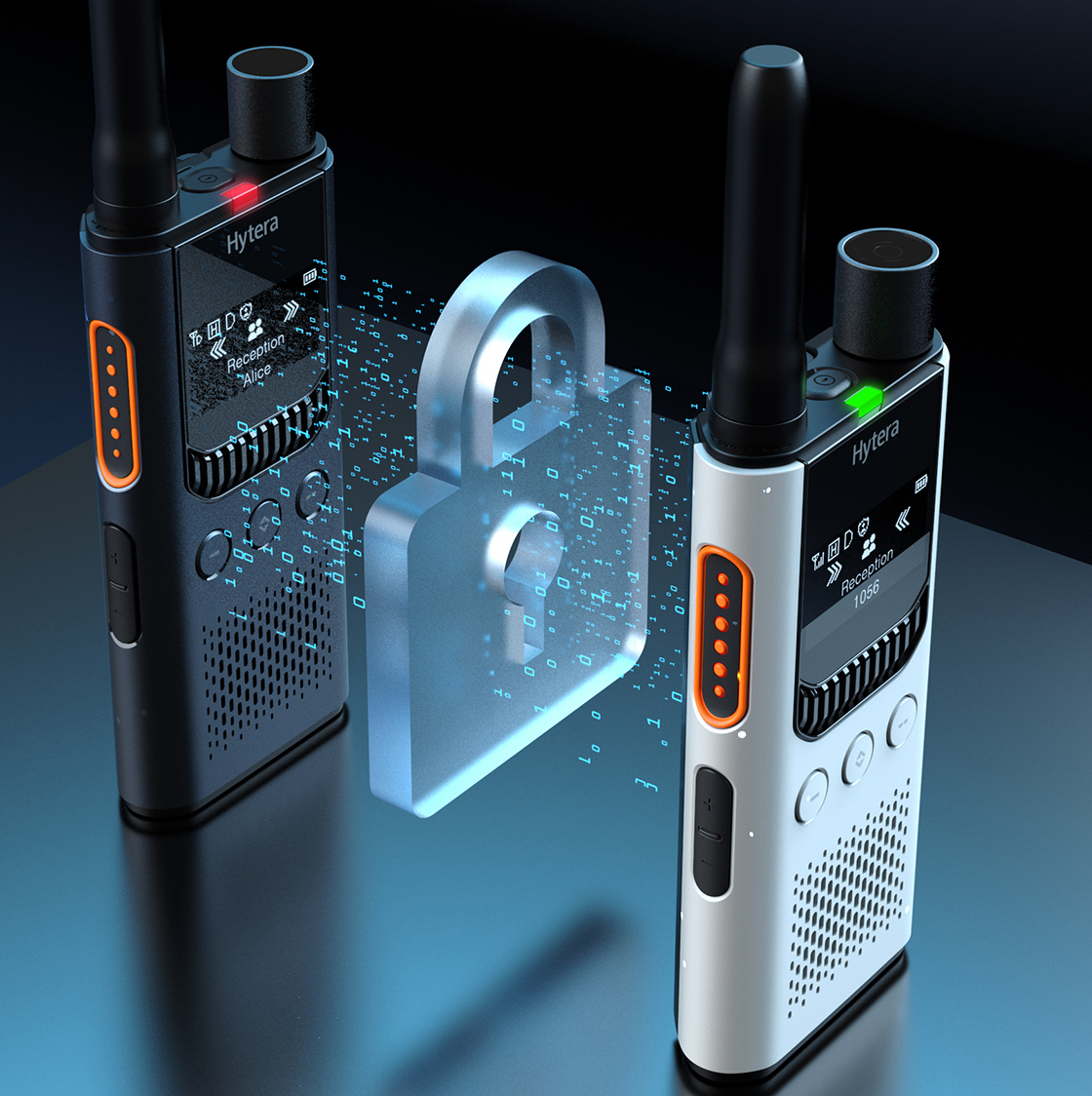

Privacy Protected
Only those with the same password can join the group call. Protect the conversation against interference from neighboring groups.
Hear it, get it
Always give you voice notifications about channel number, battery level, configuration data, and more. Get key information without any glance.

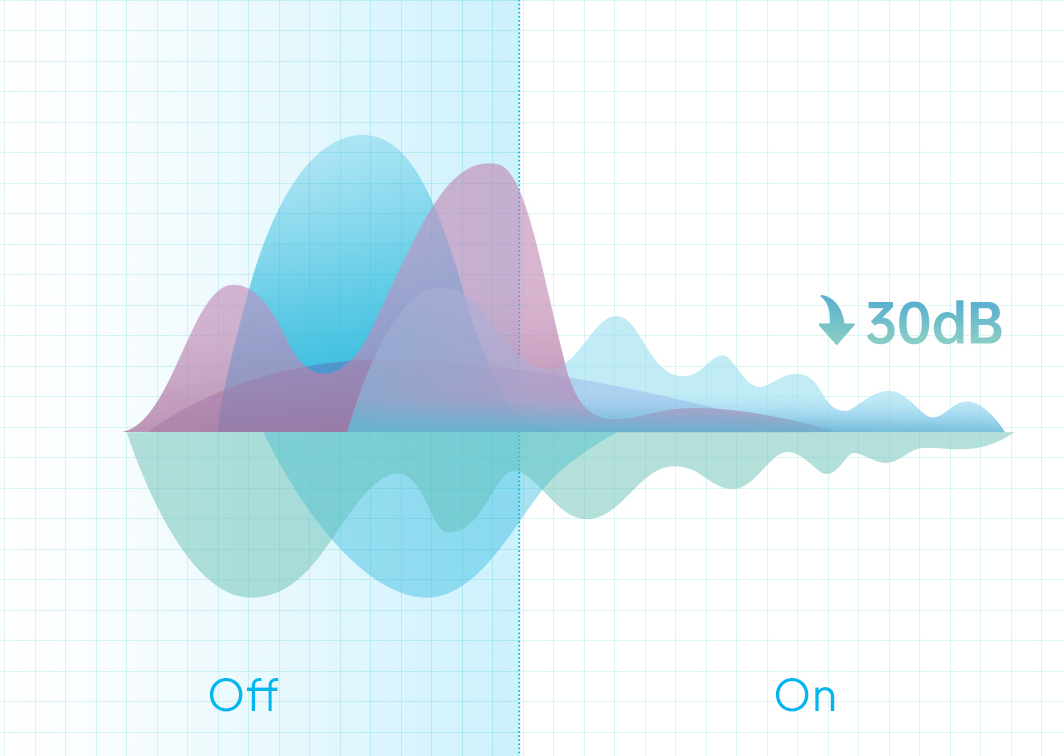

AI-based Noise Cancellation
Filter out up to 30 dB of noise thanks to the professional AI-based noise cancellation. Your focus is protected. Your productivity improved.
Whisper Mode
Whisper on a call and still be heard clearly on the other end. Protect your privacy, without disturbing the peace of customers around you.
Outlast Your Shift
With a battery life of up to 19 hours (0.5W) or 16 hours (3W) of working time and 360 hours of standby time, your focus remains on the job, not the clock.

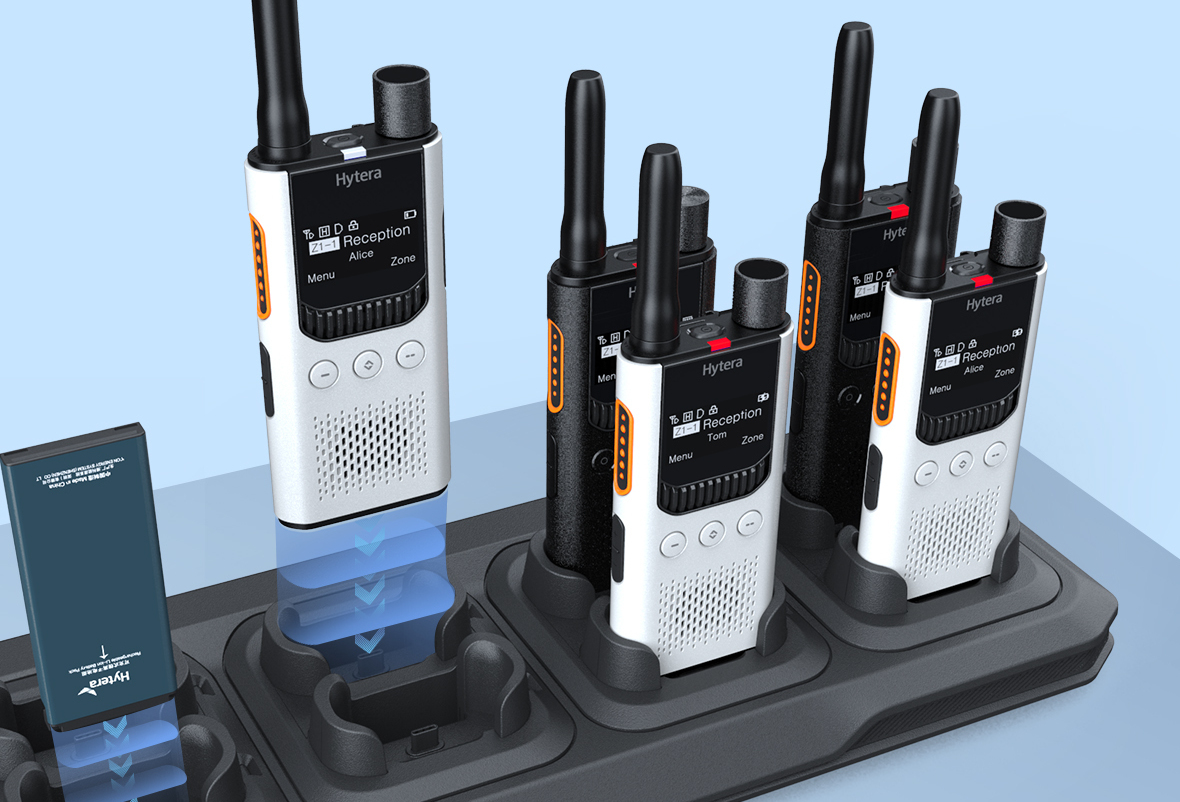

Fast charging to refuel quickly
8-pocket charger, charge your batteries alone or attached on the radios in batches, easily and quickly. Say goodbye to cable chaos.
AirClone
You can clone configuration data from one S1 Pro to many. All done in a flash.

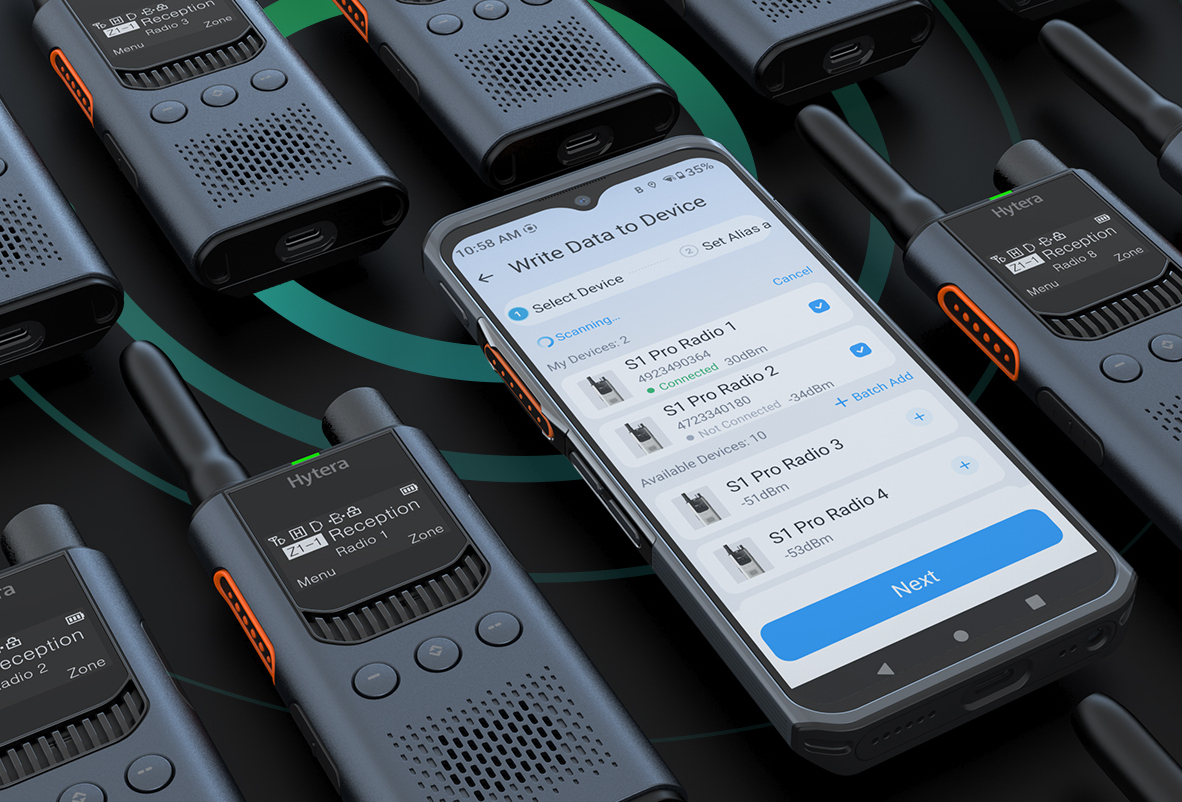

Hytera Radio APP
Manage your radio with an Android phone that's always at your fingertips. Programming, batch configuration, backing up frequency information, and more can be performed via Bluetooth.
Accessories for S1 Pro
Included as standard with S1 Pro
Systems that work with S1 Pro
Technical Specifications
General
- Frequency Range
- 400-480 MHz (Main Unit)
- Channel Capacity
- 256
- Zone Capacity
- 6 (Digital+Analog)
- Operating Voltage
- 3.8V(Rated)
- Battery
- 2200mAh Li-Polymer
- Battery Life(5/5/90 Duty Cycle, TX Power)
- Digital: 16 hrs (3W)/17 hrs (2W)/18 hrs (1W)/19 hrs (0.5W)
- Frequency Stability
- ±0.5ppm
- Antenna Impedance
- 50Ω
- Dimensions(H×W×D) mm
- 108*53*20mm (Without antenna)
- Weight
- 145g (With belt clip) ;135g (Without belt clip)
- Display
- 1.3 inch OLED
- BT
- BT(only data) 5.0
Receiver
- Sensitivity(Analog)
- 0.18μV (12dB SINAD)
- Sensitivity(Digital)
- 0.18μV
- Adjacent Channel Selectivity
- ETSI: 60dB@12.5kHz / 70dB@20/25kHz
- Intermodulation
- ETSI: 65dB@12.5/20/25kHz
- Spurious Response Rejection
- ETSI: 70dB@12.5/20/25kHz
- Blocking
- ETSI: 84dB
- Hum&Noise
- 40dB@12.5kHz; 43dB@20kHz; 45dB@25kHz
- Rated Audio Power Output
- 0.5W
- Rated Audio Distortion
- ≤5%
- Audio Response
- +1~-3dB
- Conducted Spurious Emission
- <-57dBm
Transmitter
- RF Power Output
- 1W/2W/3W (low/medium/high)
- FM Modulation
- 11K0F3E@12.5kHz 14K0F3E@20kHz 16K0F3E@25kHz
- Conducted/Radiated Emission
- -36dBm＜1GHz;-30dBm＞1GHz
- Modulation Limiting
- ±2.5kHz@12.5kHz ±4.0kHz@20kHz ±5.0kHz@25kHz
- FM Hum&Noise
- 40dB@12.5kHz 43dB@20kHz 45dB@25kHz
- Adjacent Channel Power
- 60dB@12.5kHz;70dB@20/25kHz
- Audio Distortion
- ≤3%
Environmental
- Operating Temperature
- -10℃ ~ +55℃
- Storage Temperature
- -30℃ ~ +70℃
- ESD
- ±4kV (Contact) ±8kV (Air)
