PT890Ex

Handheld | TETRA

Highlights

Functions

Created with Sketch. Authoritative IS Certifications

Through the rigorous testing of the globally recognized certification organizations, PT890Ex obtains the IECEx/ATEX certificates, to reduce the risk of accidents, and ensure the safety of users and operators.

10002

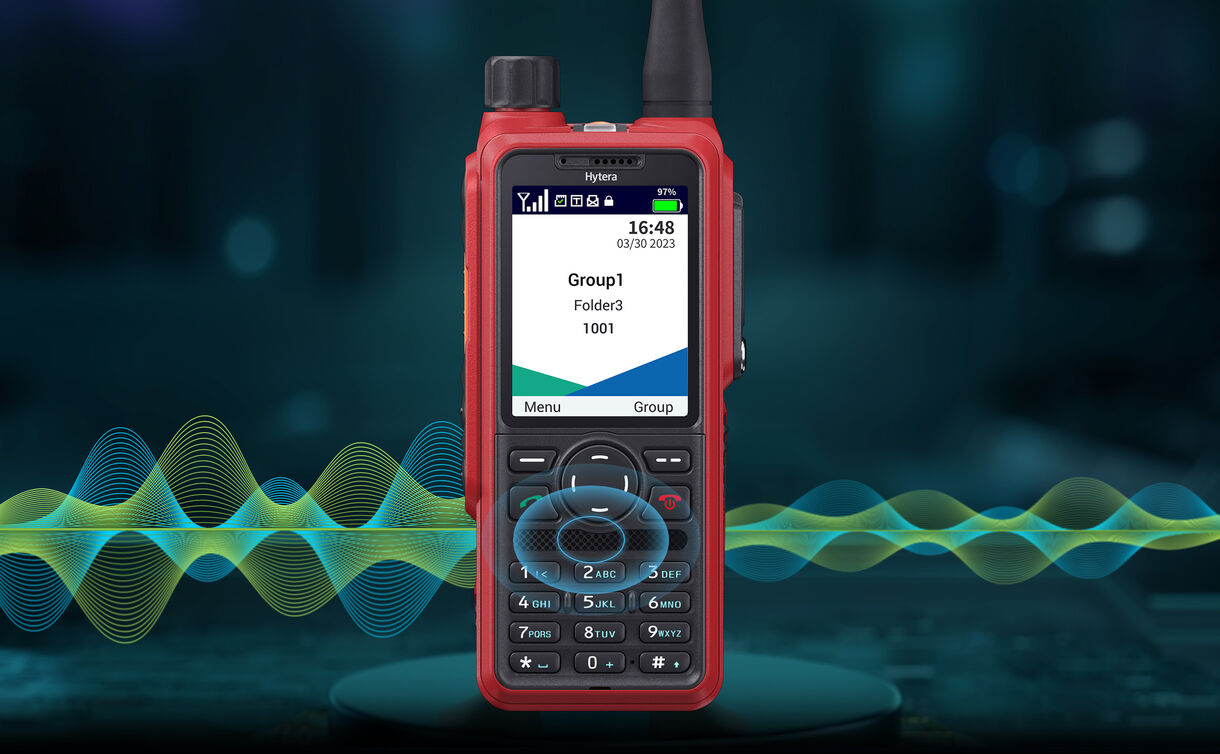

Created with Sketch. Clear and Loud Voice

With a 2W high-power speaker, the audio is louder. Integrated with AI intelligent noise reduction algorithm, automatic gain control (AGC), and other multiple audio technologies, PT890Ex isolates kinds of noisy backgrounds, and addresses weak sound issues, to make critical voice information clearer and more reliable.

Created with Sketch. Easy to Use

User-friendly UI design, upgraded 2.4-inch screen, and multifunctional buttons, along with large LED indicator lights, providing a comfortable viewing experience, convenient operation, and doubled efficiency.

10003

StayConnected-0x20 Extended Coverage

Class 3L transmission power extends the coverage area. Even in remote areas, critical information can be received, reducing coverage blind spots, enabling rapid response, and collaborating timely handling of critical tasks.

Created with Sketch. Versatile Connectivity

Supports Bluetooth 5.3, WLAN, and NFC functionalities, allowing for the expansion of third-party application solutions, enabling remote and tag management of radios, ensuring efficient terminal management.

10004

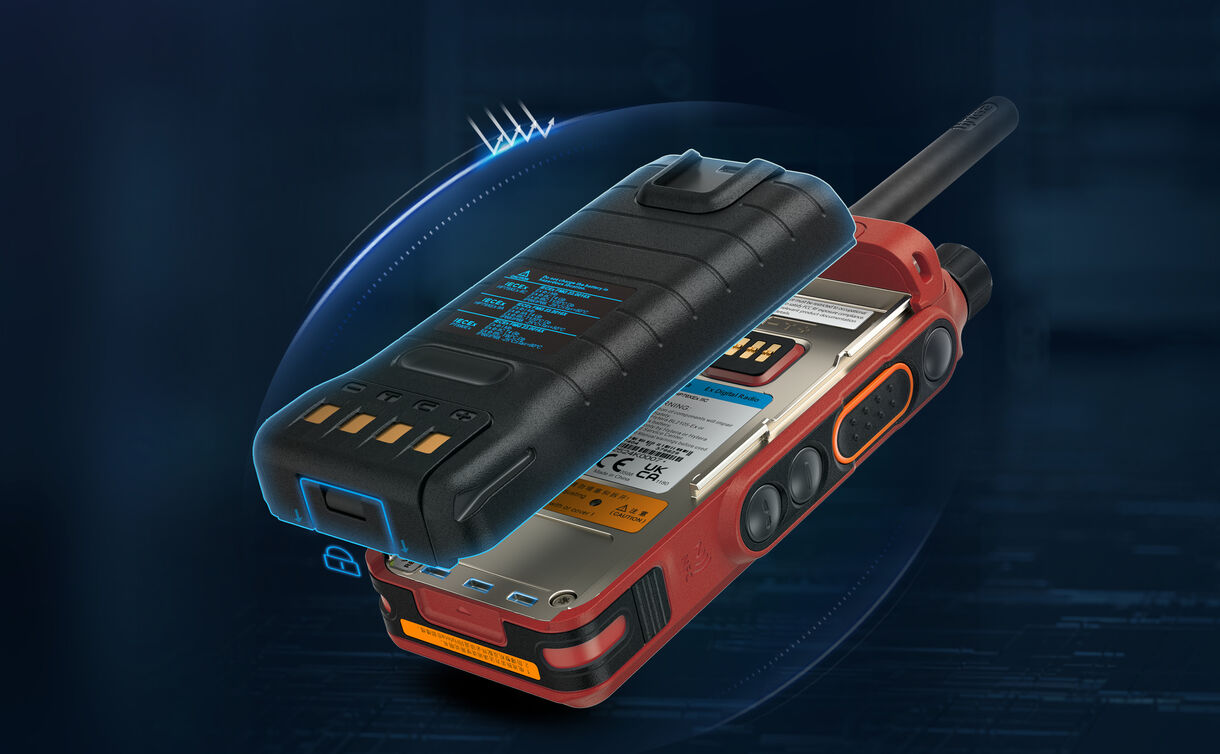

Created with Sketch. Rocksolid & Longlasting Battery

Designed with a high-grade battery protection board and a novel battery lock , PT890Ex avoid potential sparks even dropped accidentally, and ensures the safe use of the battery in hazardous circumstances. Additionally, PT890Ex prompt on screen with flashing red LED indicator, effectively addressing the security risks of non-original batteries. It also adopts a large-capacity intelligent IS battery and power-saving technology design to reduce standby power consumption, meeting the need for extended communication, and allowing seamless shift changes.

10005

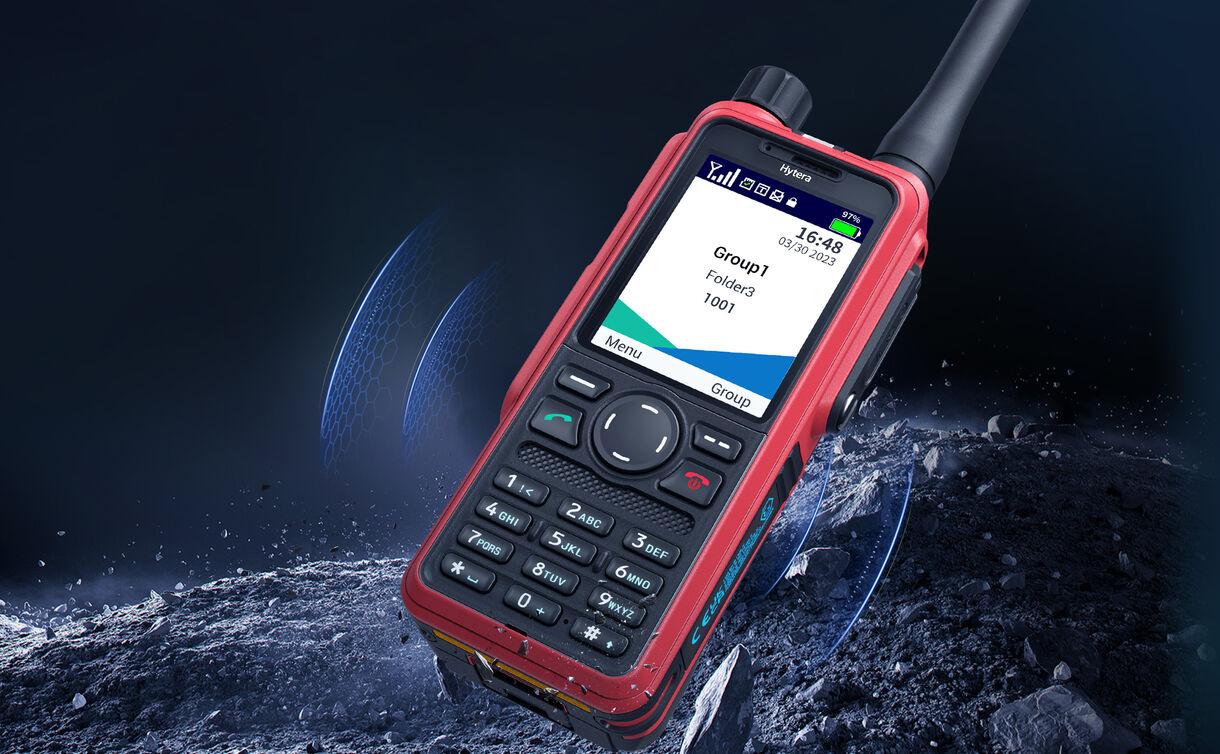

MIL-STD-20x20 Wider range of operation temperature (in Ex area)

Thanks to new explosion-proof materials and advanced mechanical design, the PT890Ex is built to work under temperatures from –25°C to 60°C in explosion-prone areas. With stable and even heat dissipation, the PT890Ex is engineered to work in extreme conditions, bringing extra safety and efficiency to everyday work.

Created with Sketch. Built for Workplace Security

Optional standalone mode settings. In case of danger, the PT890Ex will activate the man-down alarm function, precisely sending location details to protect the personal safety of team members.

10006

Accessories for PT890Ex

Included as standard with PT890Ex Included as standard with PT890Ex

Systems that work with PT890Ex

Technical Specifications

General

Frequency Range
Fv: 380–475 MHz
F5: 806-870MHz
Dimensions(H×W×D) mm
130 mm x 55 mm x 37 mm
Weight
≤390 g (with standard battery and antenna)
Battery
Standard: 2150 mAh IIC explosion-proof Li-ion battery
Operating Voltage
7.4 V DC
Rated Audio Power Output(Internal)
1.5 W (rated), 2 W (max.)

User Interface

Display
2.4 inches, 320 x 240 pixels
Talk Group-TMO
12000
Talk Group-DMO
6000
Telephone book
2000
Inbox
≤550 entries
Outbox
≤550 entries
Drafts
≤550 entries
Folder-TMO
200
Folder-DMO
50
State Message
200

Environmental

Operating Temperature
–30°C to +60°C (in non-Ex area); –25°C to +60°C (in Ex area)
Storage Temperature
–40°C to +85°C
Dust & Water Protection
IP65/IP66/IP67/IP68
Humidity
0.95
Vibration ,Drop & Shock
MIL-STD-810 HETSI EN 300 019-1-7 5M3
