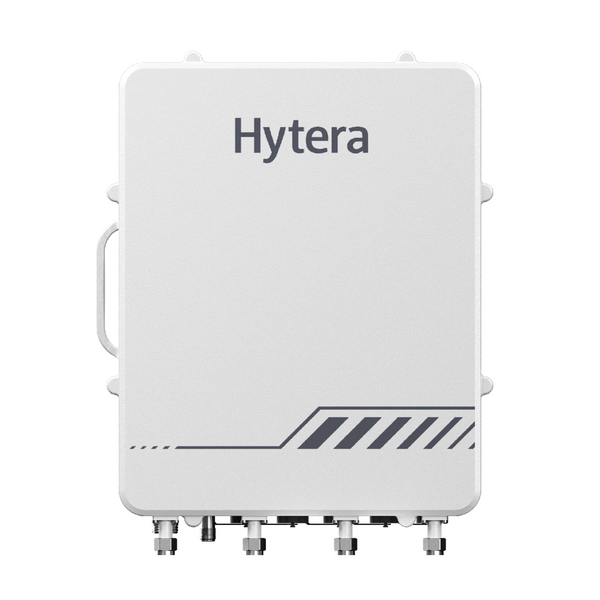

DIB-R6 SMART
TETRA Digital Integrated Base Station
Traditional critical communications networks are often weighed down by complex architectures, high deployment hurdles, and massive power consumption. The Hytera DIB-R6 SMART breaks the mold. Featuring an all-in-one architecture and advanced Software-Defined Radio (SDR) technology, it delivers unmatched security, extended coverage, and flexible network evolution—all while significantly reducing your Total Cost of Ownership (TCO).
Highlights
Functions
Highlights of DIB-R6 SMART
Deploy Faster, Anywhere
All-in-One Compact Architecture: Combines high-performance TETRA base station capabilities in an ultra-compact platform of less than 20 L and 17.5 kg. Flexible Installation: Supports both pole- and wall-mounted deployment for rapid rollouts and lower deployment costs.
Unmatched Security from Boot to Broadcast
Multi-Layer Security with Hardware Encryption: Features Secure Boot, TPM 2.0, and SSD hardware encryption. Mission-Critical Integrity: Secured with TETRA authentication and Air Interface Encryption (TEA A & TEA B).
Maximize Coverage & Minimize Infrastructure
Greater Reach, Fewer Sites: With 50W high transmit power, –120dBm high receiver sensitivity, and quad-diversity reception, DIB-R6 SMART delivers stronger signals and wider coverage per site, helping reduce the number of sites required. Cost Efficiency: Larger site coverage means fewer base stations required, drastically lowering initial infrastructure investment.
Lower OPEX and Greener Operations
Massive Energy Savings: Consumes under 340W, saving up to 77% in power compared to traditional base stations. Off-Grid Friendly: Full support for solar and UPS power supplies for remote and energy-conscious deployments.
Future-Proof Your Investment
Software-Defined Radio (SDR): Remotely configure frequencies, carriers, and transmit power without swapping hardware. High Capacity, Scalable Performance: Supports up to 4 carriers per unit, with two units cascaded to deliver up to 8 carriers for high-traffic networks. Capacity can also be expanded through software licensing without additional hardware.
Resilience in Extreme Environments
Built to Withstand the Elements: Operates reliably in temperatures ranging from –40°C to +60°C with IP66 & IP68 ratings. Stay Connected When It Matters: Guaranteed by base station redundancy, link redundancy, and local trunking.
Frictionless Maintenance & Recovery
Rapid Service Recovery: Utilize SSD-based service recovery by simply transferring an encrypted SSD to a replacement unit—no software reinstallation or license reactivation needed.
Accessories for DIB-R6 SMART
Included as standard with DIB-R6 SMART
Systems that work with DIB-R6 SMART
TETRA Systems
Technical Specifications
General Properties
- Dimensions(H×W×D) mm
- 447 mm × 356.8 mm × 124.5 mm
- Weight
- < 17.5 kg
- Frequency Range
- RX: 380–420 MHz, TX: 390–430 MHz; RX: 806–824 MHz, TX: 851–869 MHz
- ToC Power
- 50 W
- Diversity
- No, dual, triple, or quad diversity
- Max. Carrier Capacity
- 4 carriers/unit; up to 8 with 2 cascaded units (future release)
- Carrier Spacing
- 50 kHz
- RX Sensitivity(Static)
- Typical -120 dBm (BER 4%)
- RX Sensitivity(Dynamic)
- Typical -113 dBm (TU 50, TCH 7.2, BER 4%)
- Synchronization
- GNSS; PTP
- Power Supply
- -48 VDC
- Power Consumption
- ≤340 W
- Dust & Water Protection
- IP66&IP68
Environmental
- Operating Temperature
- -40℃ to +60℃
- Storage Temperature
- -40℃ to +85℃
