BD612
A Rugged Radio for Harsh Environments
Hytera's new BD612 two-way radio inherits the excellent performance of its predecessor the TC-610 series and provides professional communication that is easy to operate effectively. The robust and reliable body can guarantee excellent product performance. The clear and loud sounding voice can cope better in multiple surroundings, these include noisy environments such as the outdoors and crowded areas.
Highlights
Antenna
Enhances signal receiving ability
LED Indicator
Quick display that indicates radio status
Push-To-Talk
Easy to find and operate PTT button
Audio Jack
Support for varied Ear-pieces built in
Channel Knob
Supporting 16 channels that are easily changed
Power On/Off
Also controls the Volume
Speaker and Microphone
Provide clear reception and transmission of audio
Programmable Button
Can be programmed for useful functions as required
Functions
Rugged and Reliable

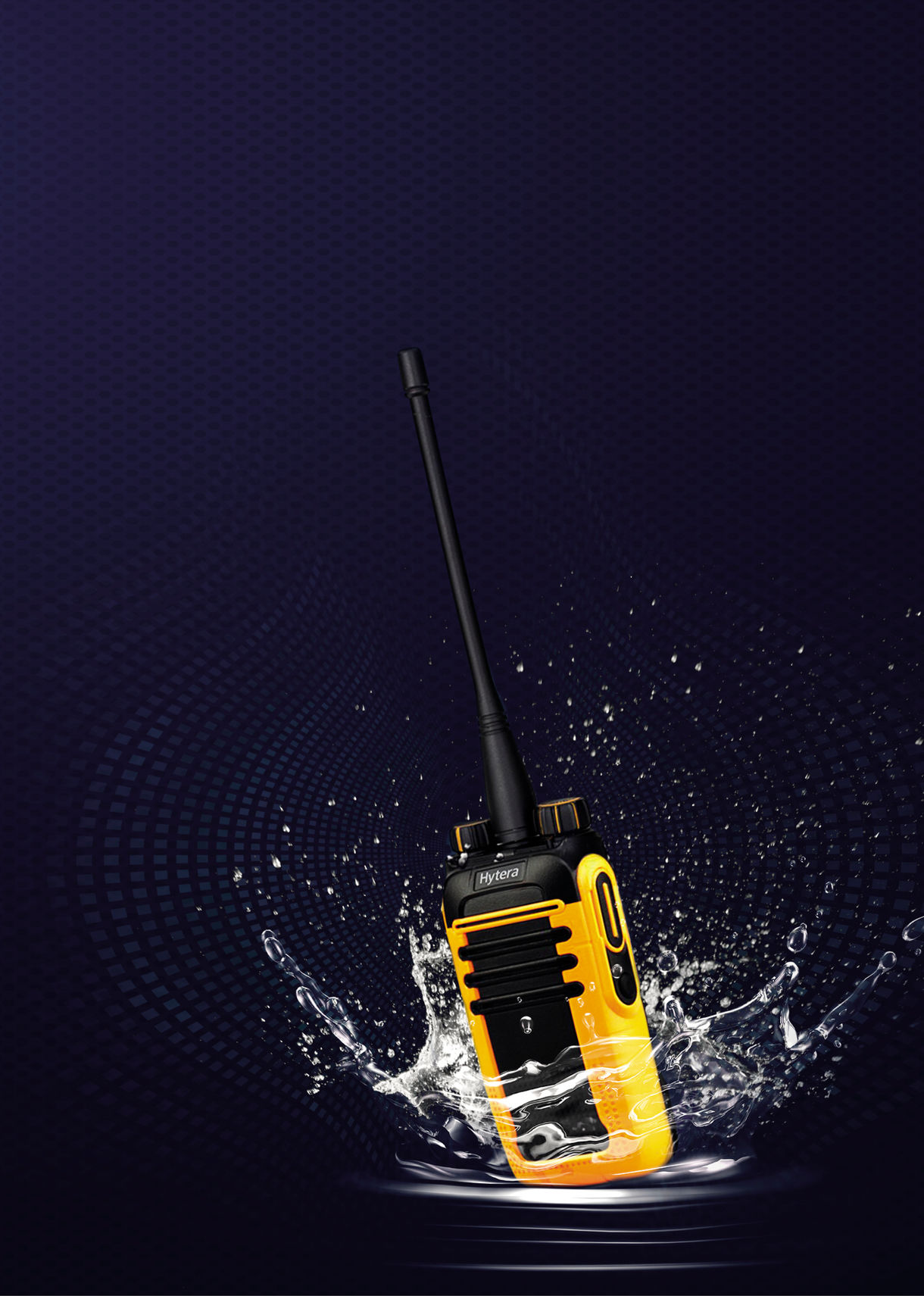

The BD612 features a bold two-color design and is tested to meet the Military Standards of 810 G, including temperature shock management and vibration handling. The BD612 is also IP66 certified for dust and waterproof and its design guarantees reliability in different environments.
Clear Voice
Fitted with the latest digital encoding and correction technology, the BD612 caters for human voice to be transmitted clearer and without distortion, even over greater distances.
Excellent Performance
With a new, innovative design, the BD612 offers better performance than traditional analogue radios. With excellent reception sensitivity, it means the device can provide a stable communication with no interference.
Analogue and Digital
The BD612 can support both analogue and digital modes on the same hardware. You can easily switch between dual operation modes which helps you to communicate with more devices.
Accessories for BD612
Included as standard with BD612
Carrying
Charger & Power
Battery
Audio
Maintenance
Antenna
Systems that work with BD612
Technical Specifications
General
- Frequency Range
- UHF: 410-480MHz
- VHF: 136-174MHz
- Channel Capacity
- 48
- Zone Capacity
- 3
- Channel Spacing
- 25/12.5Khz
- Operating Voltage
- 7.4V (rated)
- Battery
- 1500mAh lithium battery
- Battery Life (5/5/90)
- Analog: 12 hours; Digital: 16 hours
- Weight
- 240g (with standard battery and antenna fitted)
- Dimensions
- 108x54x29mm
Environmental
- Operating Temperature Range
- -30℃~+60℃
- Storage Temperature Range
- -40℃~+85℃
- IP Certification
- IP66 standard
Receiver
- Sensitivity (Digital)
- 0.22uV / BER 5%
- Sensitivity (Analogue)
- 0.22uV (Typical) (12db SIN AD)
- Hum
- 40dB @ 12.5kHz
- Noise
- 45dB @ 12.5kHz
- Rated Audio Power Output
- 0.5W
- Rated Audio Distortion
- <3%
Transmitter
- RF Power Output
- VHF High Power: 5W
- VHF Low Power: 1W
- UHF High Power: 4W
- UHF Low Power: 1W
- FM Modulation
- 11K0F3E @ 12.5kHz
- 16K0F3E @ 25kHz
- FM Hum
- 40dB @ 12.5kHz
- FM Noise
- 45dB @ 25kHz
- Audio Distortion
- <5%
